Step Deck vs Flatbed: Best Choice for Your Hauling Needs

If you’re a trucker, owner-operator, or fleet manager, the trailer you choose can make or break your business. Open-deck trailers are the backbone of U.S. freight. The two most common are the flatbed and the step deck. Together, they move a large share of loads across highways. In fact, nearly 65% of freight tonnage in the U.S. moves by truck.

So, when it comes to step deck vs flatbed, which one is right for you? Each has unique strengths and limits. Your choice depends on the loads you haul, the routes you drive, and the rules you must follow.

Picture this: you land a great load. But it’s too tall for a standard flatbed. Do you invest in a step deck? Or stick with the flatbed that’s always been reliable?

This guide breaks down the real differences. You’ll learn about cost, maintenance, versatility, and regulations. We’ll share insights from drivers and give tips on choosing the right trailer. By the end, you’ll know if a flatbed or step deck fits your needs. Plus, we’ll show how a strong dispatch service can keep your trailer full and profitable.

Let’s dive into the step deck vs flatbed debate with the latest (2025) industry facts and clear advice.

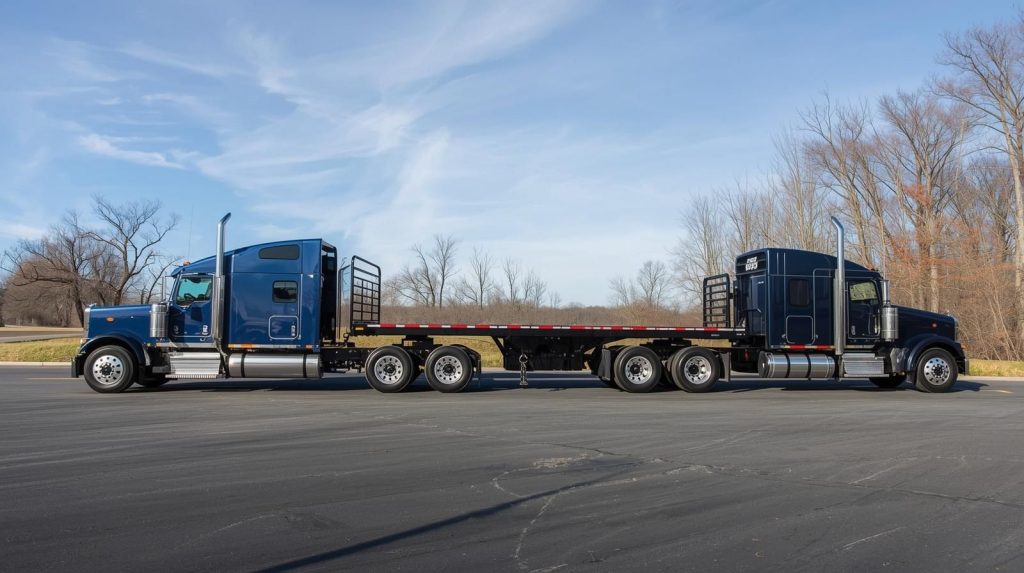

Flatbed Trailer Guide: What It Is and Why It Matters

A flatbed trailer is the most common type of open-deck trailer in trucking. It is a simple flat platform with no sides or roof. Most flatbeds are 48 to 53 feet long. The deck height is about 5 feet (60 inches). This means the legal cargo height is about 8 feet 6 inches (102 inches) before hitting U.S. height limits. A flatbed can usually carry up to 48,000 lbs of freight.

When comparing step deck vs flatbed, the flatbed is the standard option. It works well for most legal loads, but it has limits on tall cargo.

Common Uses of Flatbed Trailers

Flatbeds haul a wide variety of freight. They are used for lumber, steel beams, pipes, machinery, coils, and even vehicles. Because there are no walls or roof, loading is easy. You can load from the sides, top, or rear using a forklift or crane. Just remember: cargo must be secured with straps or chains under FMCSA rules.

Flatbeds are also cost-effective. They are widely available across the U.S. Carriers often choose them first because they are simple and versatile.

Advantages of Flatbed Trailers

• Versatile design: Can handle most standard freight within legal height.
• Easy loading: Forklifts and cranes can load from any angle.
• Low cost and easy to find: Flatbeds are common, affordable, and simple to maintain.

Drawbacks of Flatbed Trailers

• Height limits: With a 5-foot deck, cargo taller than 8’6” needs special permits. Overheight loads add cost, escorts, and planning.
• No weather protection: Cargo must be tarped if it’s sensitive to rain or sun.
• Dock height issues: Most docks are 48–52 inches tall. A flatbed sits higher, so loading at docks can be less convenient.

Flatbed Summary

The flatbed is the “all-arounder” of trucking. It can move long, wide, and heavy freight up to 48,000 lbs. But if your freight is taller than 8’6”, you’ll face limits. That’s where the step deck vs flatbed comparison matters. A step deck can handle taller loads without permits, while the flatbed stays best for standard freight.

What Is a Step Deck Trailer? Full Guide for Truckers

A step deck trailer, also called a drop deck, is an open-deck trailer built for tall loads. It solves the main problem of a flatbed — height limits. The design includes two deck levels with a “step” between them. This lower deck allows taller freight without breaking legal limits.

Design and Dimensions

A step deck has two sections. The upper deck sits just behind the tractor, about 5 feet high. It is shorter, usually 10–13 feet long. The main lower deck drops to about 3.5 feet (42 inches). This part runs 38–40 feet in length.

Because the lower deck is about 18 inches lower than a flatbed, it can carry loads up to 10 feet high. In most states, that height is still legal without special permits. This is a big advantage in the step deck vs flatbed debate.

Most step decks are 48 or 53 feet long. Weight capacity is slightly less than flatbeds because the design is heavier. Many step decks can haul around 42,000–45,000 lbs compared to 48,000 lbs on a flatbed.

Special Features

Many step decks include ramps. This makes it easy to drive equipment like tractors or loaders onto the trailer. With ramps, a step deck can handle jobs that overlap with lowboy trailers while still offering more deck length.

Common Uses of Step Deck Trailers

Step decks are popular in industries that move tall or oversized freight. They often haul:

• Construction equipment like backhoes or small excavators
• Agricultural machinery
• Large industrial equipment
• Prefabricated building components
• Aircraft or wind turbine parts
• Trucks and vehicles that are too tall for a flatbed

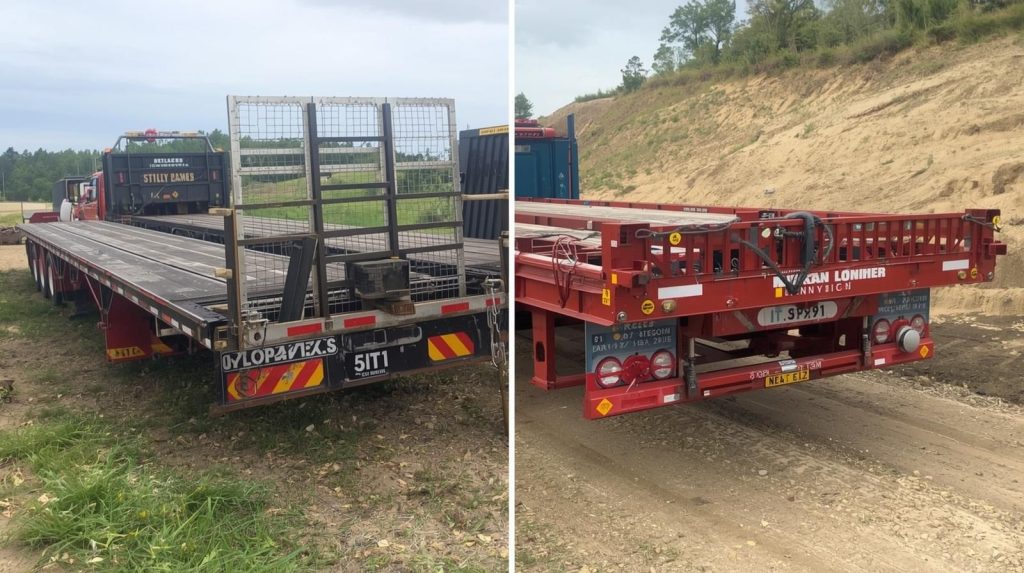

Hauls taller cargo legally:

The biggest advantage of a step deck is height. It can carry loads over 8’6″ tall — up to 10 feet — without special permits in many cases. This saves time, money, and paperwork. A load that needs permits on a flatbed might fit legally on a step deck. This makes the step deck vs flatbed choice clear for tall freight.

Lower deck = easier loading: The lower deck sits around 3.5 feet off the ground. This makes loading heavy equipment safer and simpler. Forklifts have an easier angle, and driving machinery up ramps is less steep. The lower center of gravity also improves load stability.

Versatility: Most loads that fit on a flatbed also fit on a step deck. With load levelers, you can create a flat surface across the “step” to carry lumber, pipes, or other freight. Experienced drivers say a step deck can haul “90% of your flatbed loads” plus taller freight. This flexibility increases your earning potential.

Drawbacks of Step Deck Trailers

Higher cost and weight: Step decks are more expensive than flatbeds. The extra steel, drop frame, and ramps add cost. They also weigh more, slightly reducing payload capacity. Smaller tires and extra parts can increase maintenance costs.

Less deck space on upper level: The upper deck is only 10–13 feet long. Very long items may not sit evenly without load levelers. Some shippers list loads as “flatbed only,” even though a step deck could carry them with extra planning.

Not dock-friendly: Step decks are hard to load at standard docks. The lower deck is too low, and the short upper deck can’t back up fully. Flatbeds are closer to dock height and easier for loading/unloading.

Special maintenance needs: Step decks use smaller tires on the lower deck. These 17.5″ tires wear faster and require special inventory. The landing gear can scrape on uneven ground. The shorter wheelbase may cause more bounce when empty. Maintenance is slightly more involved than a flatbed.

Step Deck Summary

A step deck trailer is a specialized tool. It costs more and needs extra care but can haul taller loads legally. It is perfect for machinery or freight between 9–10 feet tall. In the step deck vs flatbed debate, the step deck wins for height and flexibility. Flatbeds remain better for standard freight and dock-friendly loads.

Flatbed vs Step Deck Trailer – Which One Is Right for You?

Now that we’ve defined each trailer, let’s compare flatbed vs step deck on key factors: dimensions, load versatility, cost, maintenance, and regulations.

Quick Specs Comparison

Step Deck vs Flatbed: Key Operational Differences

The main difference between a step deck vs flatbed trailer is height. Step decks give roughly 18 extra inches of cargo clearance. This affects what you can haul and whether you need permits. But there are other practical differences too.

Height & Clearance

A flatbed plus load is usually limited to 13’6″ tall (some western states allow 14′). A step deck can carry about a 10′ tall load on its lower deck (3.5′ deck + 10′ load ≈ 13.5′ overall).

This makes step decks ideal for tall freight like bulldozers, HVAC units, or tall crates. Many loads that need permits on a flatbed fit legally on a step deck. Both trailers share the same width limit (8’6″) and length limits (48–53′ plus overhang). Lower deck height also lowers the center of gravity, giving more stability for heavy equipment.

Load Versatility

Flatbeds handle most standard loads: lumber, pipes, pallets, and machinery. Step decks excel with taller freight. Generators, tractors, and industrial machinery fit better on a step deck without permits.

Most step decks can still carry flatbed loads. Very long items may need load levelers to span the “step.” Brokers often allow step decks to haul flatbed loads if you have tarps or levelers.

Flatbed freight is more common, but step deck loads often pay more. Specialized equipment or oversize machinery can command higher rates per mile.

Loading and Unloading

Both trailers are open-deck, so you can load from the side or top.

Step decks have an edge for certain equipment. The lower deck sits closer to the ground, so forklifts lift less high. Drive-on ramps make loading wheeled machinery easier. You don’t always need a loading dock.

Flatbeds can work at docks better than step decks. The lower deck of a step deck is too low for standard dock heights. Palletized loads from warehouses are often easier with a flatbed.

Regulations & Permits

Both trailers must follow FMCSA and DOT rules for weight, dimensions, and cargo securement.

Step decks reduce the need for overheight permits. A 10′ tall crate that requires a permit on a flatbed may fit legally on a step deck. This saves permit fees and avoids route restrictions.

Weight permits are similar: most 5-axle setups max out at 80,000 lbs gross. Anything heavier needs additional permits or specialized trailers like lowboys.

Both flatbeds and step decks require proper securement. Chains, straps, binders, and edge protectors are essential. Cargo is exposed, so safety rules must be followed. Professional dispatchers can help ensure compliance.

Maintenance & Operating Costs

Flatbeds are lighter and simpler, so they often cost less to maintain. Fewer specialty parts mean fewer repairs.

Step decks have extra joints, smaller lower-deck tires, and more sections to inspect. This can increase tire, brake, and suspension wear slightly. Over time, a step deck may cost a few cents more per mile in maintenance.

Step Deck vs Flatbed: Summary

Choosing the right trailer depends on your freight and operations. Flatbeds are versatile, lighter, and ideal for standard loads. They work well at docks and cost less to buy and maintain.

Step decks shine when hauling taller loads. The lower deck adds extra height clearance, reduces the need for permits, and makes loading heavy equipment easier. Step decks can also carry most flatbed loads with the right accessories.

In the step deck vs flatbed debate, flatbeds win for simplicity and everyday freight. Step decks win for tall, oversized, or specialized cargo. Your choice should match the types of loads you haul, your routes, and your budget.
